Scan cobot P

Automated Industrial three-dimensional scanning system

The automated three-dimensional online inspection system obtains the product's profile data through optical non-contact scanning with a laser sensor, and transmits the real-time data to the processing unit. Through the decision-making of the processing unit, the control unit is adjusted to achieve online adjustments to optimize the results. Therefore, three-dimensional online inspection can also easily realize the screening of defective products and the sorting of product types. It is like adding a pair of eyes to the production line and robotic arm, improving product production efficiency and qualification rate.

Back to list

Product features

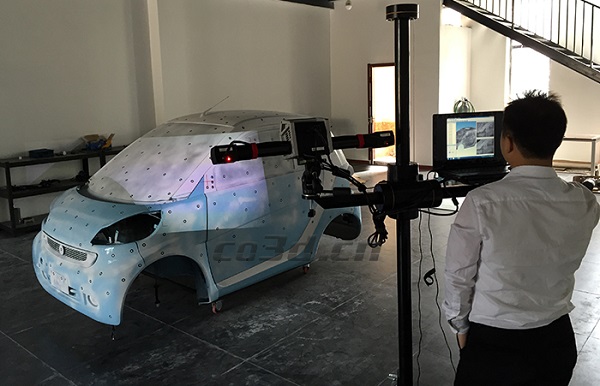

Safe operation performance

Human-machine collaborative robot, no need for guardrails, easy and convenient to operate.

Assembly line batch fully automatic inspection

Fully automatic three-dimensional online inspection of robots can complete batch full-automatic inspection by programming the same workpiece.

Safe operation performance

Human-machine collaborative robot, no need for guardrails, easy and convenient to operate

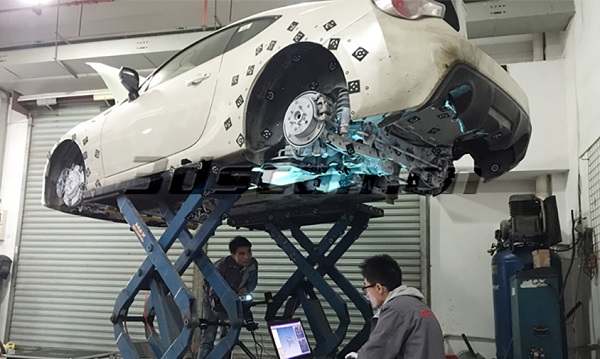

High-precision data

Accuracy up to 0.01mm, strong ability to resist environmental interference

Specification parameters

Model		Scan cobot P
Scanning mode		Non-contact three-dimensional scanning ( photographic three-dimensional scanning )
Projection, grating technology		Microstructure light projection and extrapolation multi-frequency phase shift technology
Calibration Technique		Loop coding calibration ( 13 steps )
Single scan range ( mm )	Independent mode	400×300
		100×75
	Regulatory mode	200×150
		50×40
Single measurement accuracy ( mm )		±0.01
Single-sided scanning time ( s )		＜5，＜3
Splicing method		Automatic intelligent splicing, manual feature splicing
Scannable object range ( mm )		30～1500
Average sampling point distance ( mm )		0.06-0.47
Industrial three-dimensional photogrammetry ( Accuracy )		Support industrial three-dimensional photogrammetry splicing project coordinate point file import
Industrycamera	Resolution ( pixels )	1.31，5，8 million pixels
	Camera angle ( degree )	18 degrees, 27 degrees, 32.5 degrees
Industrial lens ( mm )		8, 12, 16, 25, 35 depending on the model configuration
Calibration unit		Metal / Glass / Granite
Industrial operation table		Mobile tripod / professional workbench / heavy operating frame
Data output format		ASC，STL，PLY, IGES
Operating system		Windows xp / windows7 / windows10 32-bit / 64-bit Chinese / English
Light source, energy ( W )		Standard 100 W halogen LED, 50 W high-energy LED ( White ) ; high-energy lamp ( HPL ) 250 W halogen lamp
Calibration board		Square granite material calibration plate
Working temperature, power supply		0～40℃、100～240V AC
Examining report		The equipment accuracy test report and calibration version accuracy test report issued by the metrology quality inspection institute
Camera platform		360 degree free adjustment platform before and after
Scanister	System Size ( mm )	440x140x120
	System weight ( kg )	2.5

Full-scale 3D inspection

3D scanning obtains complete point cloud data of the workpiece, making full-scale inspection possible
