The whole set of substations and transmission and distribution lines of various voltages in the power system is called the power grid. Power grid construction has become the main direction of China's power construction. China's power grid investment scale continues to expand. By 2020, a unified strong smart grid will be fully built and the goal of building a world-leading power grid will be initially achieved. Customers need to locate the grid structure holes and replace accessories. They use three-dimensional scanning technology to determine the accurate position through scanning, which can speed up the progress and accuracy of later work, improve work efficiency, and save time.

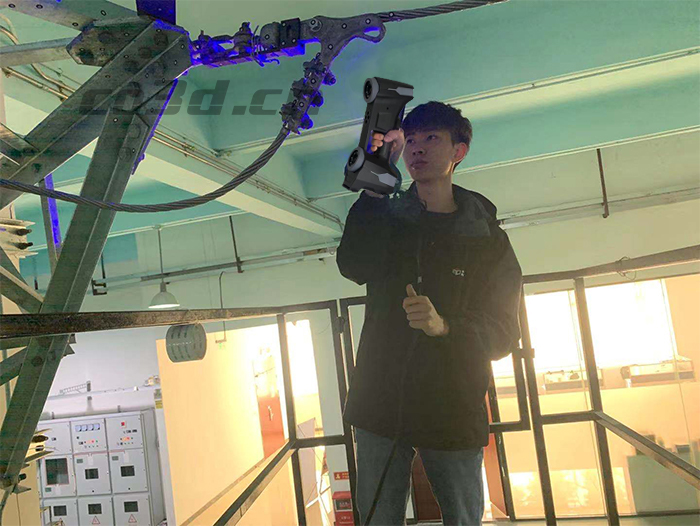

Electric tower scanning site map
The customer needs to be able to complete the scanning in a short time, position the holes, and obtain data with high accuracy. The scanned sample is 3 or 4 meters high, and has a complex structure, with many parts at the joints, and it is easy to form angles, which poses a certain challenge to the scanning work. difficulty.
Use traditional scanning methods. The scanning work cannot be completed in a short time, it will consume a lot of time, and the scanned data is not enough to complete the subsequent work, so this scanning method is not suitable.
Electric tower scanning site map
To deal with customers' different sample scanning needs, we will customize suitable solutions based on customer samples. For this customer's scan, our engineers used a handheld 3D scanner Model 49 to comprehensively scan the sample to obtain accurate data. The scan can be completed in 10 minutes to obtain data.

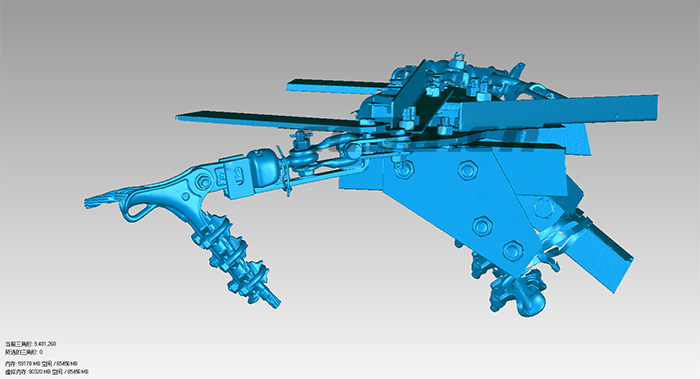

Electric tower STL data chart
The scanner has fast measurement speed, high data acquisition accuracy and strong stability, and can scan workpieces quickly and accurately. The equipment's laser line can be switched to a single line, which is convenient for scanning deep holes and details, and can obtain complete data. Then import the scanned data into 3D software for processing, and obtain a data analysis report. The scanned data meets the customer's needs, and the details are scanned very well. It can accurately position the holes and complete the later replacement of accessories, thereby solving the problems faced by the customer.
Electric tower STL data chart
Electric tower STL data chart
